Valve Components

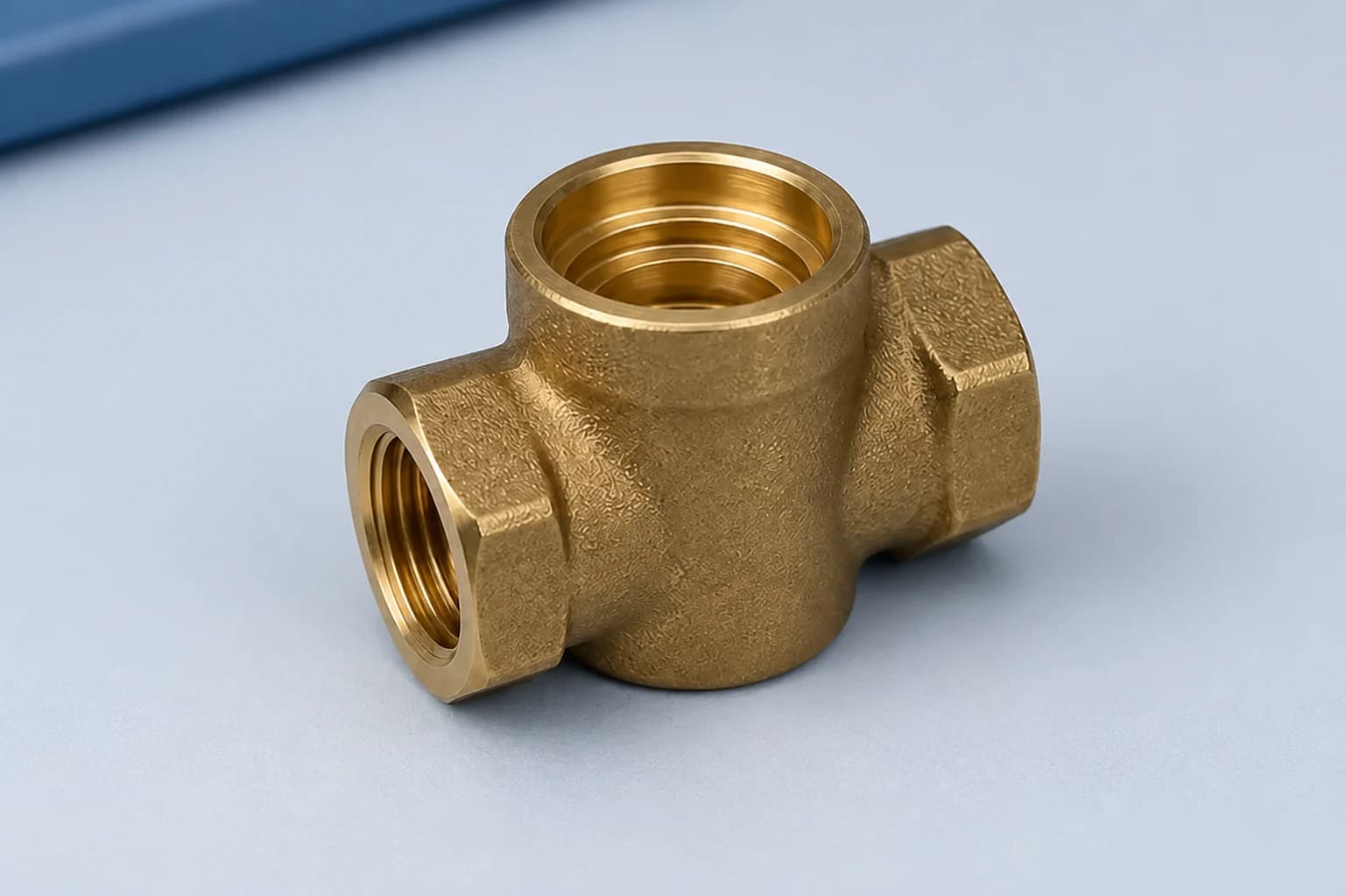

Forged Brass Valve Body

Made-to-drawing forged Brass Valve Body for valve and HVAC equipment OEMs. Connection geometry, material, finish and inspection requirements are confirmed during quotation.

BFC-VC-01Made to drawingOEM supply

Product code: BFC-VC-01
Product family: Valve Components
Typical buyers: Valve and HVAC equipment OEMs
Manufacturing basis: Approved drawing and order specification
Quotation inputs: Drawing, application, quantity and inspection scope

Request a Quote Custom Process

Product images show typical configurations and are not dimensional specifications. Final construction follows the approved drawing and quotation.

Engineering options

Configure the part around your drawing

The quotation defines the exact interfaces, brass grade, manufacturing route and inspection package for the application.

Connections and geometry

Specify threads, tube interfaces, sealing faces, bores, ports and mating components.

Material and finish

Select the brass grade and surface finish around the medium, environment and compliance requirements.

Critical dimensions

Identify datums, tolerances, runout, surface finish and functional characteristics on the drawing.

Inspection package

Agree thread checks, dimensional reports, material documents and functional testing where required.

Technical specification

Details to include in your RFQ

Exact values are manufactured to the approved drawing. Include the following information where available.

Port thread	Specify the required size, standard or drawing callout
Body envelope and cavity	Specify the required size, standard or drawing callout
Sealing-seat interface	Specify the required size, standard or drawing callout
Material and finish	Specify the brass grade, plating and applicable compliance requirements
Quantity and packaging	Include first-order quantity, annual demand and packaging preference
