BFC-CD-01Custom Drawing Parts
Custom Threaded Adapter
- Drawing revision
- Custom thread
- Material, finish and quantity
CD · Product family

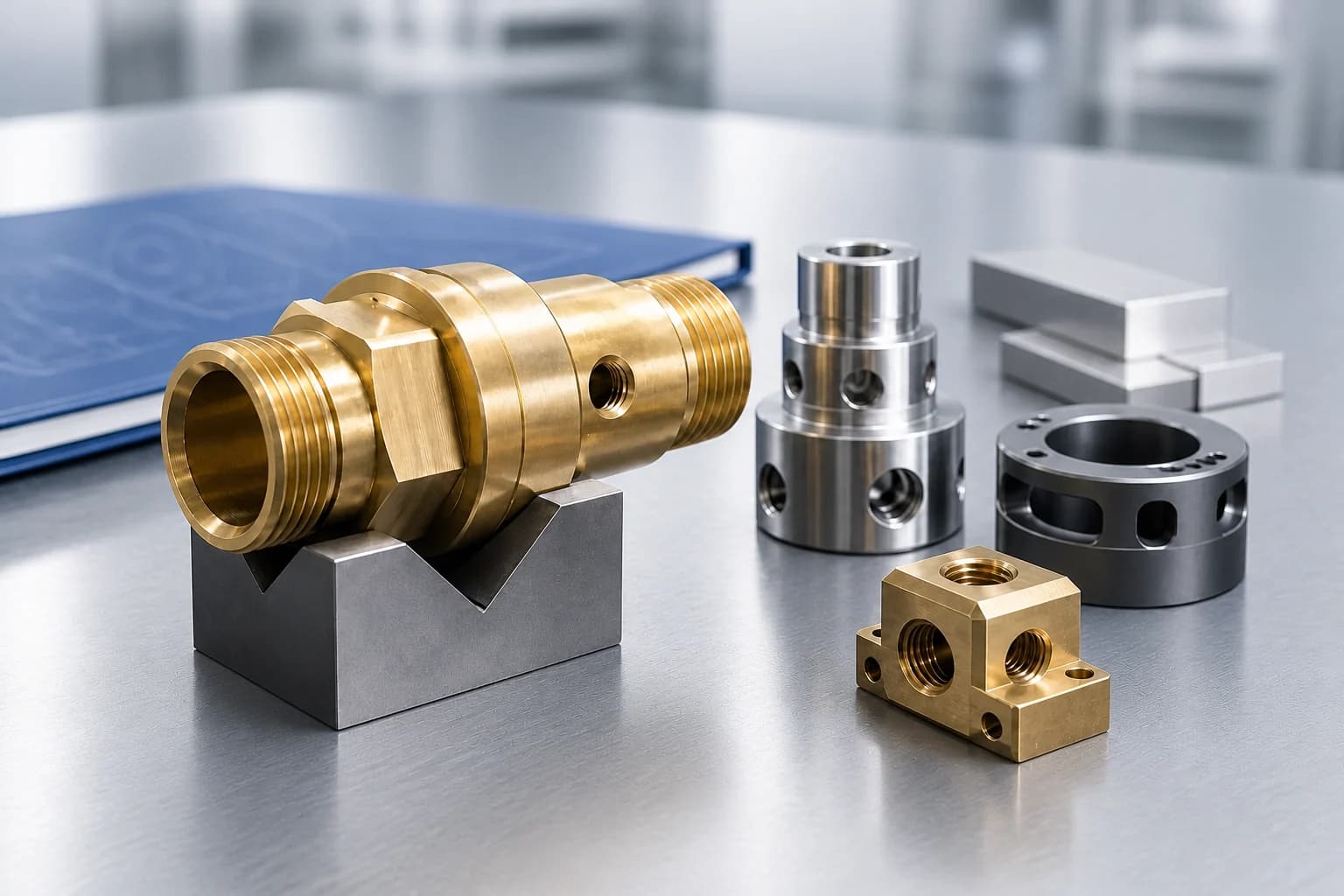

Custom Brass CNC Turned Parts
Drawing-led turned parts, prototypes and small subassemblies managed through revision and sample approval.
Applications and buyers
Typical Applications for Custom Drawing Parts
OEM engineering, replacement projects, product development and private-label programs. Choose the closest product type below, then define the final geometry, material, operating requirements and inspection scope in your RFQ.
- Family code
- BFC-CD
- Product types
- 4
- Inspection focus
- Drawing revision, critical dimensions, FAI, material records and change control.
- Supply model
- Made to drawing / OEM
Product range
Custom Drawing Parts Components
Product codes make inquiries easier to track. Dimensions, threads, materials and finishes are configured for the approved requirement.
BFC-CD-01
BFC-CD-02Custom Drawing Parts
Multi-step Turned Body
- Multiple diameters and lengths
- Bores and grooves
- Drawing tolerances
BFC-CD-03Custom Drawing Parts
Prototype-to-Production Part
- Prototype quantity
- Revision
- Target annual volume and approval route
BFC-CD-04Custom Drawing Parts
Brass Subassembly
- Controlled BOM
- Torque and seals
- Purchased parts and function
RFQ checklist
Information that helps us quote accurately
A complete requirement shortens engineering review and reduces assumptions in price, tooling and lead time.
Application and operating conditions
Medium, pressure, temperature, mating parts and system responsibility.
Geometry and material
Controlled revision, threads, sealing interfaces, alloy and finish.
Inspection and documents
Critical dimensions, gauges, testing, FAI and material records.
Request a Quote for a Custom Brass Part
Send the available information. Missing technical decisions are identified before quotation.
