Custom Brass Valve Bodies and Components

Custom brass valve bodies, bonnets, gland nuts and retainers made to drawing, with sealing geometry, pressure boundaries and test responsibility defined for quotation.

Request Family Review View components

Separate the valve body from the complete valve assembly

Use this family for drawing-based bodies, bonnets, gland nuts and retainers. Define which component is requested and which party supplies mating parts and performs final assembly testing.

1
Provide the body or component drawing, revision and mating interfaces. Mark seat geometry, cavities, threads and sealing surfaces that require inspection.
2
List the bonnet, stem, seat, packing, seals and fasteners included in the request. Quote machining and any requested assembly work as separate scopes.
3
State material, quantity, medium and operating conditions, together with surface-finish and test requirements. Distinguish component inspection from complete-valve pressure or leakage testing.

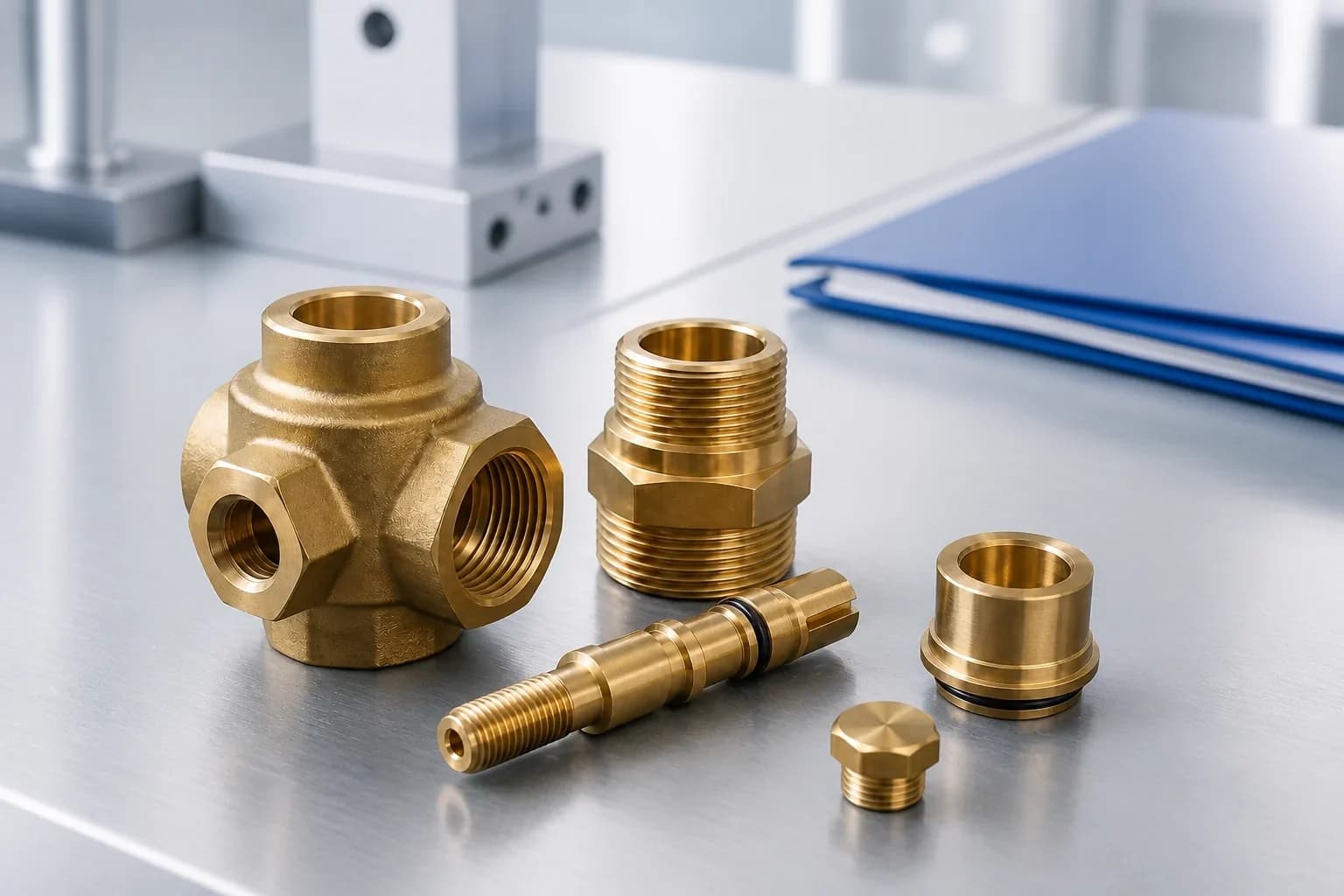

Representative Valve Components component arrangement

Components Selection inputs Applications Quality route

Choose the closest part type, then define your specification

These are manufacturing starting points rather than fixed catalog ratings. Your approved drawing controls the final part.

Forged Brass Valve Body

For a valve body quote, provide the port threads, body envelope, and cavity or sealing-seat interfaces shown on the drawing.

View drawing checklist

Valve Bonnet

For a bonnet quote, provide the body thread, stem bore, seal geometry, and hex dimensions shown on the drawing.

View drawing checklist

Gland Nut / Retainer

For a gland nut quote, specify the thread, hex or knurl, bore dimensions, and required finish.

View drawing checklist

Valve Stem / Seat Retainer

For a retainer quote, identify the diameter, thread or groove geometry, concentricity, and surface-roughness requirements.

View drawing checklist

Define the interfaces before quotation

Machined bodies, bonnets, retainers and internals with the assembly and pressure boundary clearly defined.

Valve Components selection workflow illustration

01Assembly boundary
02Seat and seal geometry
03Pressure boundary
04Test responsibility

Connect the drawing to real operating conditions

Valve & Flow Control

Machined valve bodies and components reviewed with the pressure boundary, seats, media and test responsibility clearly defined.

HVAC & Refrigeration

Service, charging and flare components reviewed for refrigerant compatibility, cleanliness, sealing and leak-test scope.

No rating or certification is assigned by appearance.

Material, pressure, temperature, media compatibility, testing and compliance remain project-specific until reviewed.

See the quality route

Request a Quote for a Custom Brass Part

Send the available information. Missing technical decisions are identified before quotation.
