Connections and geometry
Specify threads, tube interfaces, sealing faces, bores, ports and mating components.
Sensor-side threadProcess-side connectionBore and concentricityMaterial and finish to specification
Pressure & Instrumentation
Sensor / Transmitter Adapter
Made-to-drawing sensor / Transmitter Adapter for sensor OEMs and automation integrators. Connection geometry, material, finish and inspection requirements are confirmed during quotation.
BFC-PI-03Made to drawingOEM supply
- Product code
- BFC-PI-03
- Product family
- Pressure & Instrumentation
- Typical buyers
- Sensor OEMs and automation integrators
- Manufacturing basis
- Approved drawing and order specification
- Quotation inputs
- Drawing, application, quantity and inspection scope

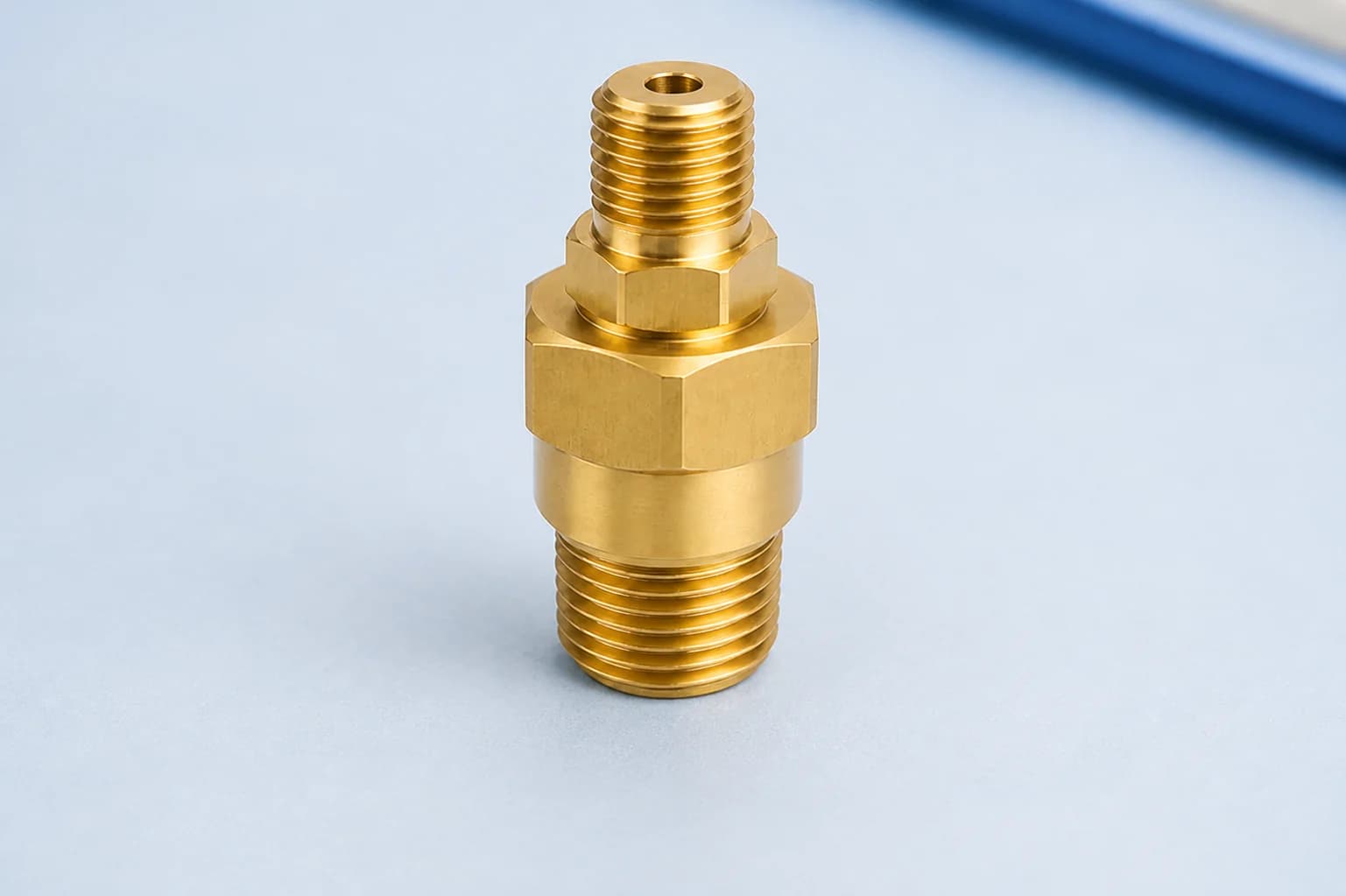

Product images show typical configurations and are not dimensional specifications. Final construction follows the approved drawing and quotation.
Engineering options
Configure the part around your drawing
The quotation defines the exact interfaces, brass grade, manufacturing route and inspection package for the application.
Material and finish
Select the brass grade and surface finish around the medium, environment and compliance requirements.
Critical dimensions
Identify datums, tolerances, runout, surface finish and functional characteristics on the drawing.
Inspection package
Agree thread checks, dimensional reports, material documents and functional testing where required.
Technical specification
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
| Sensor-side thread | Specify the required size, standard or drawing callout |
|---|---|
| Process-side connection | Specify the required size, standard or drawing callout |
| Bore and concentricity | Specify the required size, standard or drawing callout |
| Material and finish | Specify the brass grade, plating and applicable compliance requirements |
| Quantity and packaging | Include first-order quantity, annual demand and packaging preference |
Quality planning
Inspection and documentation for this part
The required controls are agreed during quotation according to the drawing, application risk and order scope.
Related products
More Pressure & Instrumentation Components
Explore related component types in the same manufacturing and application family.
BFC-PI-01Pressure & Instrumentation
Pressure Gauge Adapter
- Male or female connection
- NPT, BSP, G, metric or drawing
- Hex and bore geometry
BFC-PI-02Pressure & Instrumentation
Pressure Gauge Socket
- Instrument thread
- Bore and sealing face
- Body length and material
BFC-PI-04Pressure & Instrumentation
Instrument Manifold Block
- Port count and port map
- Thread or tube interface
- Block envelope and passages
Request a quotation for Sensor / Transmitter Adapter
Send the drawing, application, quantity and inspection requirements. We will review the information needed to prepare a clear quotation.
