HVACR Components
Flare Adapter
Made-to-drawing flare Adapter for HVACR and gas-equipment OEMs. Connection geometry, material, finish and inspection requirements are confirmed during quotation.
BFC-HV-03Made to drawingOEM supply
- Product code
- BFC-HV-03
- Product family
- HVACR Components
- Typical buyers
- HVACR and gas-equipment OEMs
- Manufacturing basis
- Approved drawing and order specification
- Quotation inputs
- Drawing, application, quantity and inspection scope

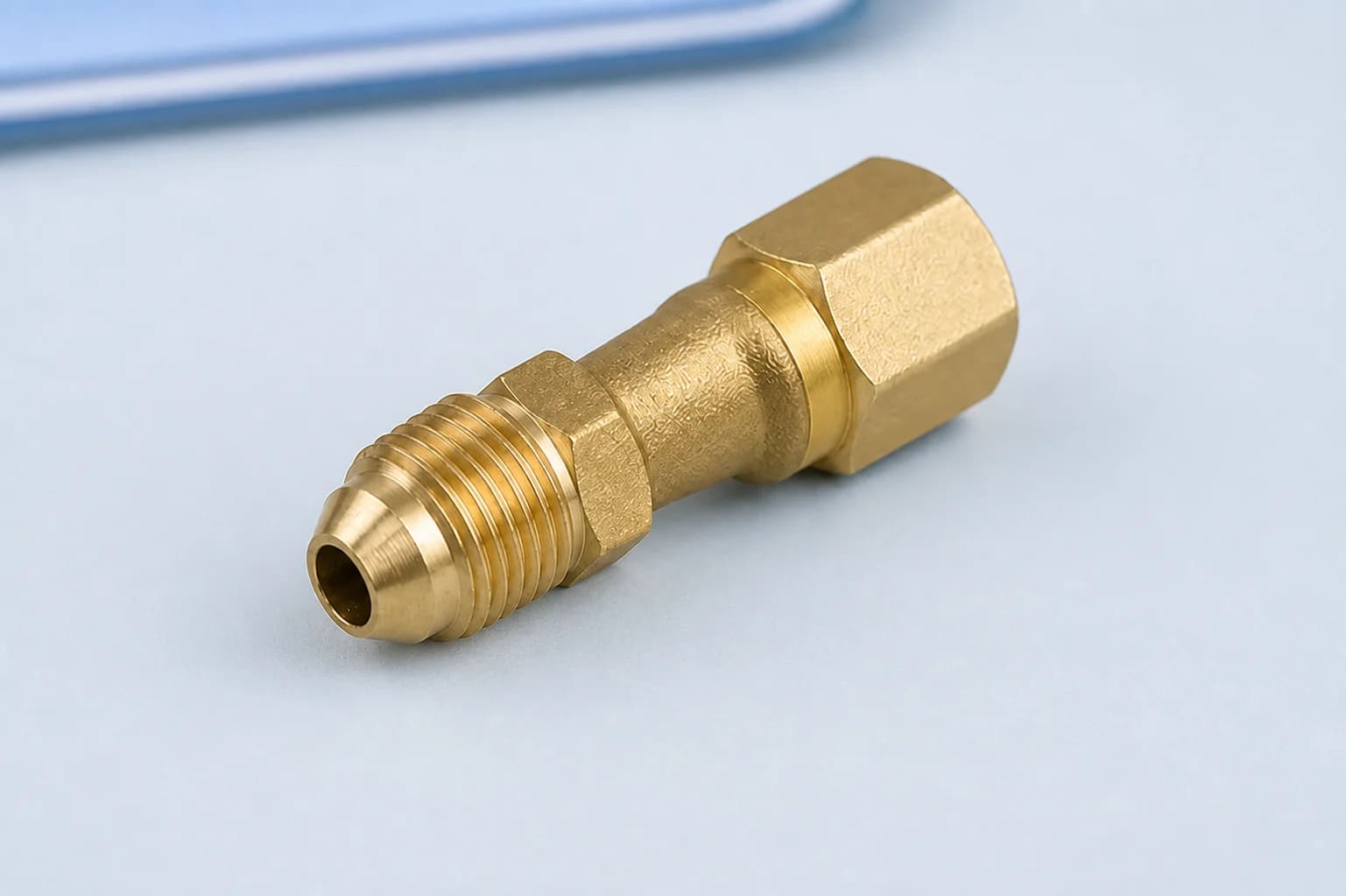

Product images show typical configurations and are not dimensional specifications. Final construction follows the approved drawing and quotation.
Engineering options
Configure the part around your drawing
The quotation defines the exact interfaces, brass grade, manufacturing route and inspection package for the application.
Material and finish
Select the brass grade and surface finish around the medium, environment and compliance requirements.
Critical dimensions
Identify datums, tolerances, runout, surface finish and functional characteristics on the drawing.
Inspection package
Agree thread checks, dimensional reports, material documents and functional testing where required.
Technical specification
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
| Flare geometry | Specify the required size, standard or drawing callout |
|---|---|
| Tube size | Specify the required size, standard or drawing callout |
| Thread and hex | Specify the required size, standard or drawing callout |
| Material and finish | Specify the brass grade, plating and applicable compliance requirements |
| Quantity and packaging | Include first-order quantity, annual demand and packaging preference |
Quality planning
Inspection and documentation for this part
The required controls are agreed during quotation according to the drawing, application risk and order scope.
Related products
More HVACR Components Components
Explore related component types in the same manufacturing and application family.
BFC-HV-01HVACR Components
Refrigeration Service Valve Body
- Service port
- Tube or flare connection
- Cavity and sealing interface
BFC-HV-02HVACR Components
Charging Valve Body
- Core interface
- Body thread
- Tube connection and sealing surface
BFC-HV-04HVACR Components
Refrigerant Access Fitting Body
- Access port
- Core cavity
- Cap and tube interface
Request a quotation for Flare Adapter
Send the drawing, application, quantity and inspection requirements. We will review the information needed to prepare a clear quotation.
