Connections and geometry
Specify threads, tube interfaces, sealing faces, bores, ports and mating components.
Multiple diameters and lengthsBores and groovesDrawing tolerancesMaterial and finish to specification
Custom Drawing Parts

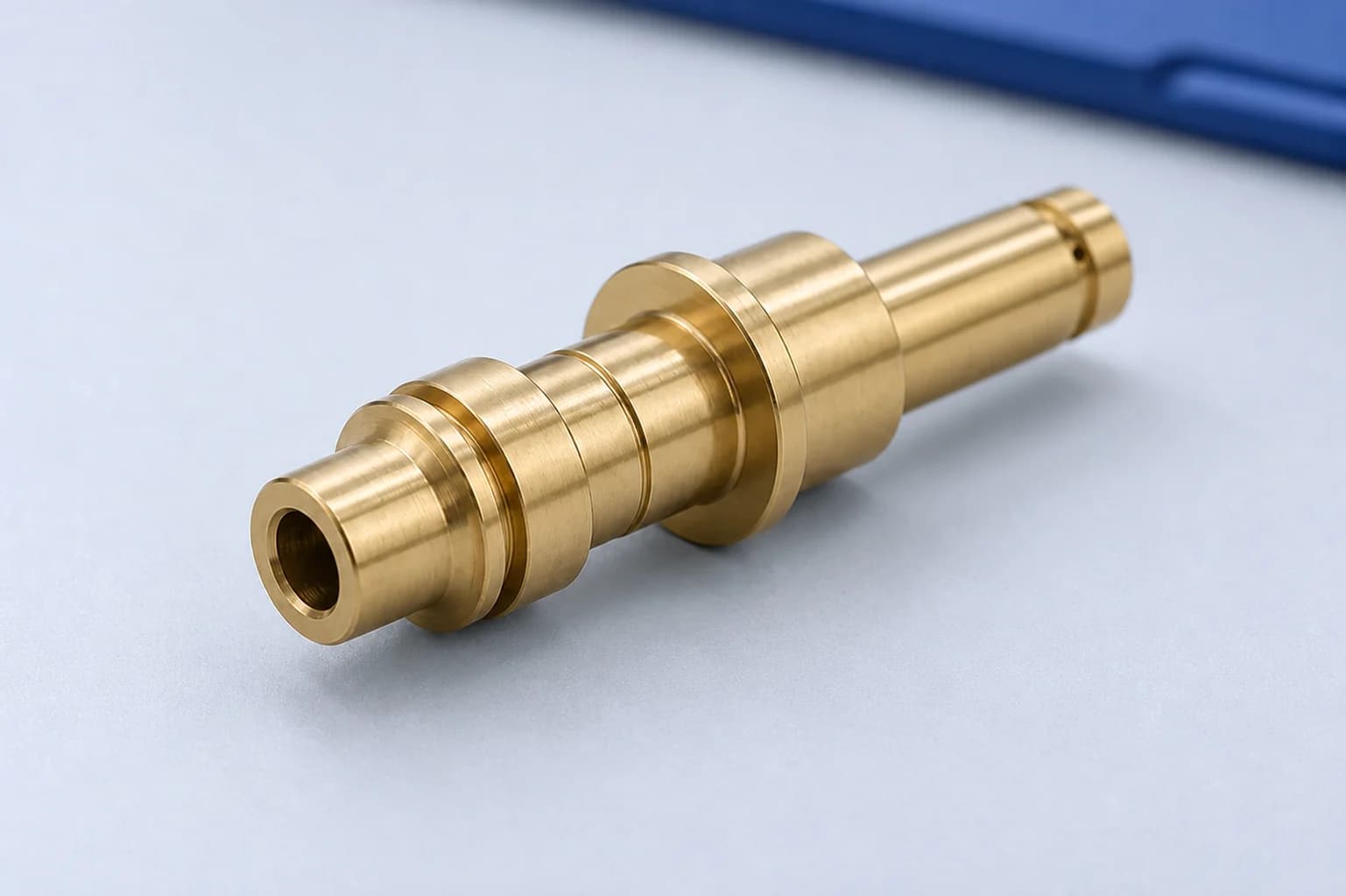

Multi-step Turned Body
Made-to-drawing multi-step Turned Body for valve, instrument and equipment OEMs. Connection geometry, material, finish and inspection requirements are confirmed during quotation.
BFC-CD-02Made to drawingOEM supply
- Product code
- BFC-CD-02
- Product family
- Custom Drawing Parts
- Typical buyers
- Valve, instrument and equipment OEMs
- Manufacturing basis
- Approved drawing and order specification
- Quotation inputs
- Drawing, application, quantity and inspection scope
Product images show typical configurations and are not dimensional specifications. Final construction follows the approved drawing and quotation.
Engineering options
Configure the part around your drawing
The quotation defines the exact interfaces, brass grade, manufacturing route and inspection package for the application.
Material and finish
Select the brass grade and surface finish around the medium, environment and compliance requirements.
Critical dimensions
Identify datums, tolerances, runout, surface finish and functional characteristics on the drawing.
Inspection package
Agree thread checks, dimensional reports, material documents and functional testing where required.
Technical specification
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
| Multiple diameters and lengths | Specify the required size, standard or drawing callout |
|---|---|
| Bores and grooves | Specify the required size, standard or drawing callout |
| Drawing tolerances | Specify the required size, standard or drawing callout |
| Material and finish | Specify the brass grade, plating and applicable compliance requirements |
| Quantity and packaging | Include first-order quantity, annual demand and packaging preference |
Quality planning
Inspection and documentation for this part
The required controls are agreed during quotation according to the drawing, application risk and order scope.
Related products
More Custom Drawing Parts Components
Explore related component types in the same manufacturing and application family.
BFC-CD-01Custom Drawing Parts
Custom Threaded Adapter
- Drawing revision
- Custom thread
- Material, finish and quantity
BFC-CD-03Custom Drawing Parts
Prototype-to-Production Part
- Prototype quantity
- Revision
- Target annual volume and approval route
BFC-CD-04Custom Drawing Parts
Brass Subassembly
- Controlled BOM
- Torque and seals
- Purchased parts and function
Request a quotation for Multi-step Turned Body
Send the drawing, application, quantity and inspection requirements. We will review the information needed to prepare a clear quotation.
