Custom Drawing Parts
Prototype-to-Production Part
Made-to-drawing prototype-to-Production Part for R&D teams and product OEMs. Connection geometry, material, finish and inspection requirements are confirmed during quotation.
BFC-CD-03Made to drawingOEM supply
- Product code
- BFC-CD-03
- Product family
- Custom Drawing Parts
- Typical buyers
- R&D teams and product OEMs
- Manufacturing basis
- Approved drawing and order specification
- Quotation inputs
- Drawing, application, quantity and inspection scope

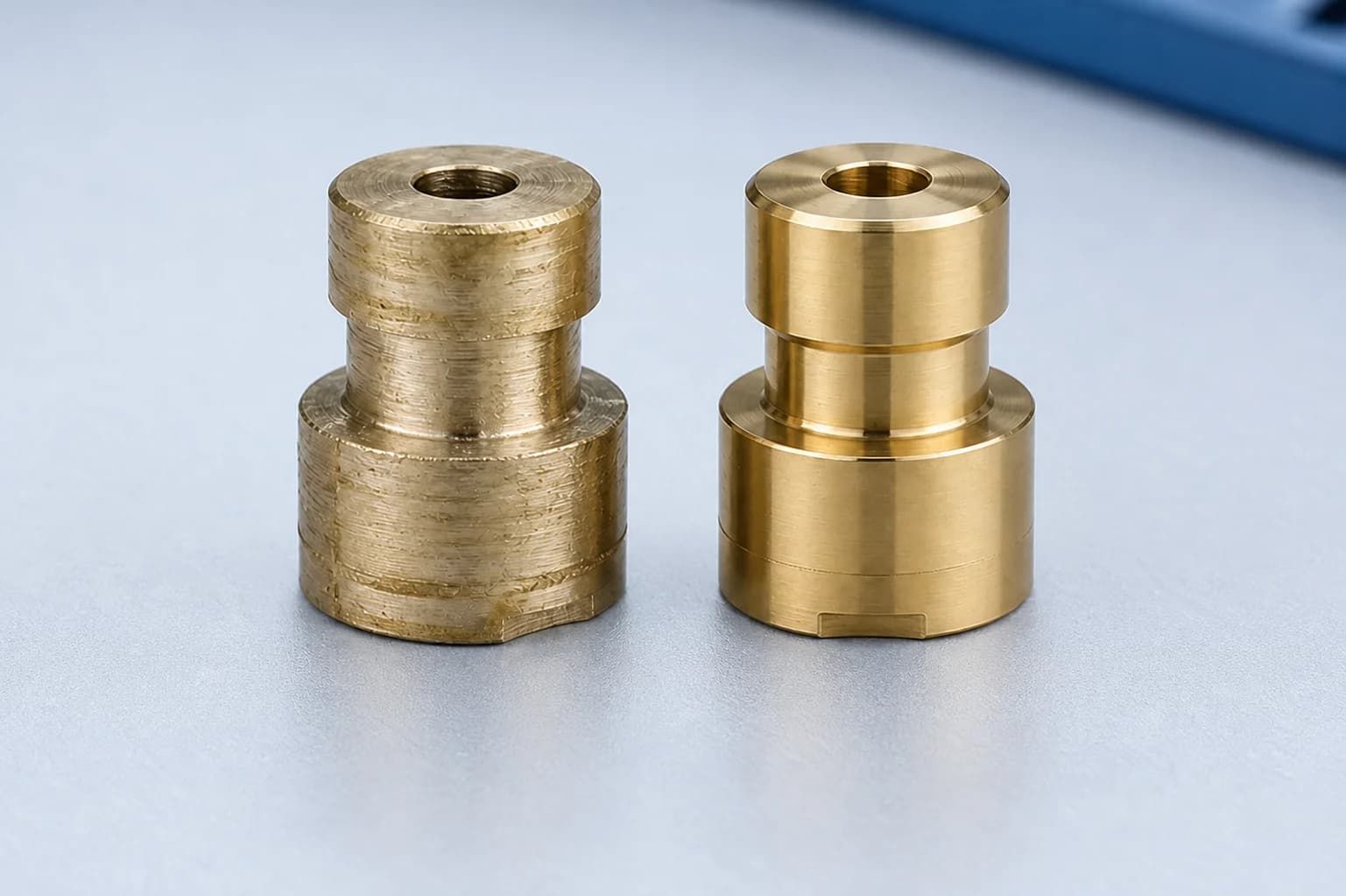

Product images show typical configurations and are not dimensional specifications. Final construction follows the approved drawing and quotation.
Engineering options
Configure the part around your drawing
The quotation defines the exact interfaces, brass grade, manufacturing route and inspection package for the application.
Material and finish
Select the brass grade and surface finish around the medium, environment and compliance requirements.
Critical dimensions
Identify datums, tolerances, runout, surface finish and functional characteristics on the drawing.
Inspection package
Agree thread checks, dimensional reports, material documents and functional testing where required.
Technical specification
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
| Prototype quantity | Specify the required size, standard or drawing callout |
|---|---|
| Revision | Specify the required size, standard or drawing callout |
| Target annual volume and approval route | Specify the required size, standard or drawing callout |
| Material and finish | Specify the brass grade, plating and applicable compliance requirements |
| Quantity and packaging | Include first-order quantity, annual demand and packaging preference |
Quality planning
Inspection and documentation for this part
The required controls are agreed during quotation according to the drawing, application risk and order scope.
