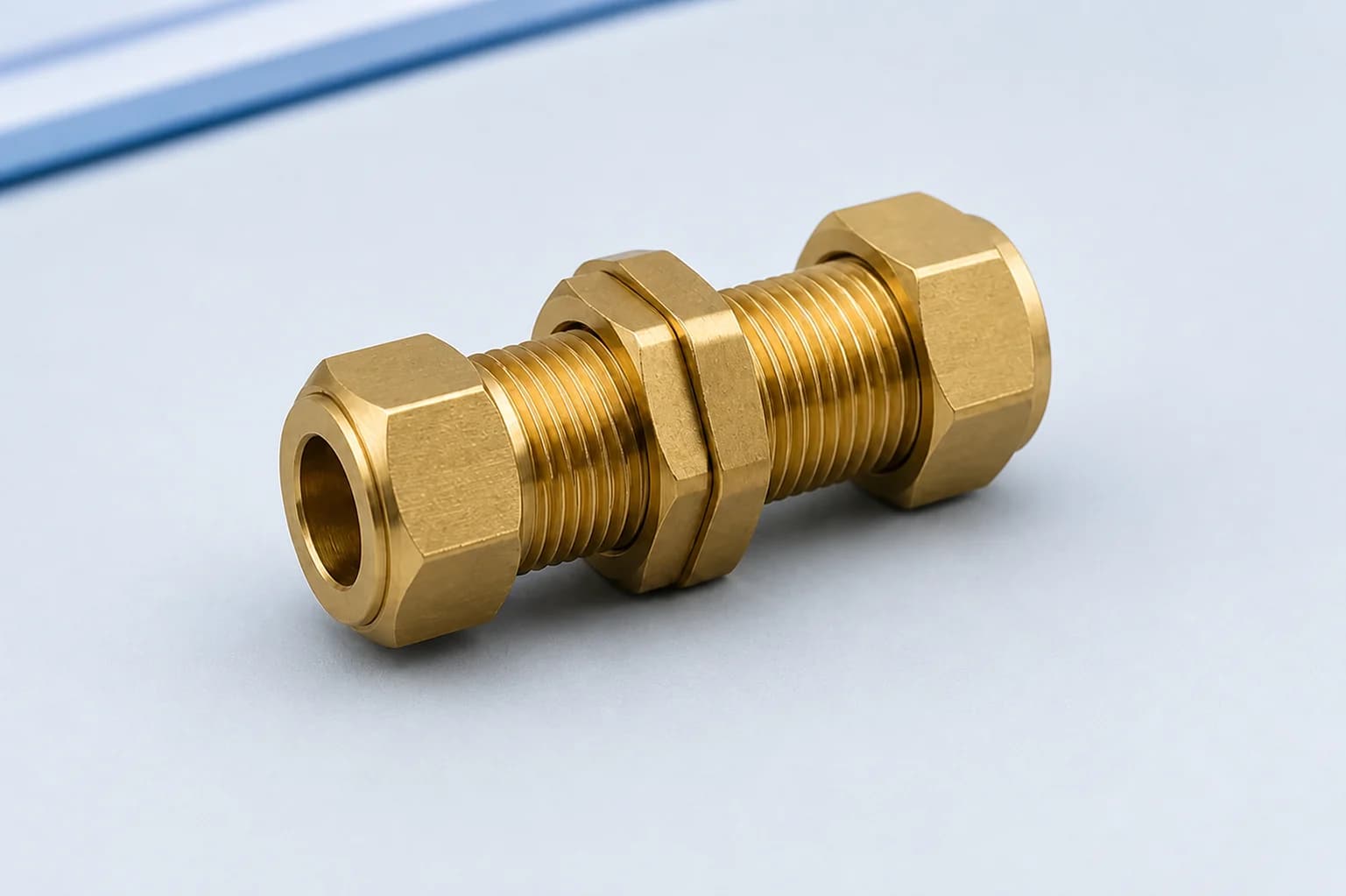

View drawing checklistCustom Brass Compression Bulkhead Union Body
Made-to-drawing brass compression bulkhead union body for OEM fitting assemblies installed through a panel or enclosure. This route covers quotation of the machined body; mating parts and assembly responsibility are confirmed separately in writing.
Scope before quotation
This page is a body-only OEM RFQ route, not a listing for a complete bulkhead union. Tube-fitting nuts, ferrules, locknuts, pressure ratings, assembly performance and branded-system compatibility are not assigned unless separately reviewed and confirmed.
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
01Requested supply scope
State machined body only, additional locknut requested, complete union requested for capability review, or not sure.
02Tube interfaces
Provide both tube outside diameters, units and the customer-defined compression interfaces or drawing references.
03Panel mounting envelope
Specify panel-hole diameter, panel-thickness range, shoulder location, body thread, wrench flats and required clearances.
04Mating compression system
Provide the nut, ferrule or sleeve arrangement and interface drawing; no branded-system interchangeability is assumed.
05Body geometry
Include bore, overall length, concentricity, shoulders, tolerances and critical surface requirements.
06Operating conditions
Provide the medium, pressure, temperature, vibration and assembly-level test requirements for engineering review.
07Material and finish
State the required brass alloy, finish, lead restrictions and documentation requirements.
08Order and inspection scope
Provide drawing revision, sample or order quantity, annual demand, inspection method, packaging and labeling.
Machined bulkhead body quotation
- Page scope
- Machined bulkhead union body to the approved drawing
- Requires written confirmation
- Panel locknut · Tube-fitting nuts and ferrules · Complete union assembly and testing
- Inspection package
- Agree thread checks, dimensional reports, material documents and functional testing where required.
Request Engineering Quote: Custom Brass Compression Bulkhead Union Body
Send the available information. Missing technical decisions are identified before quotation.
