Compression Fitting Bodies
Male / Female Connector Body

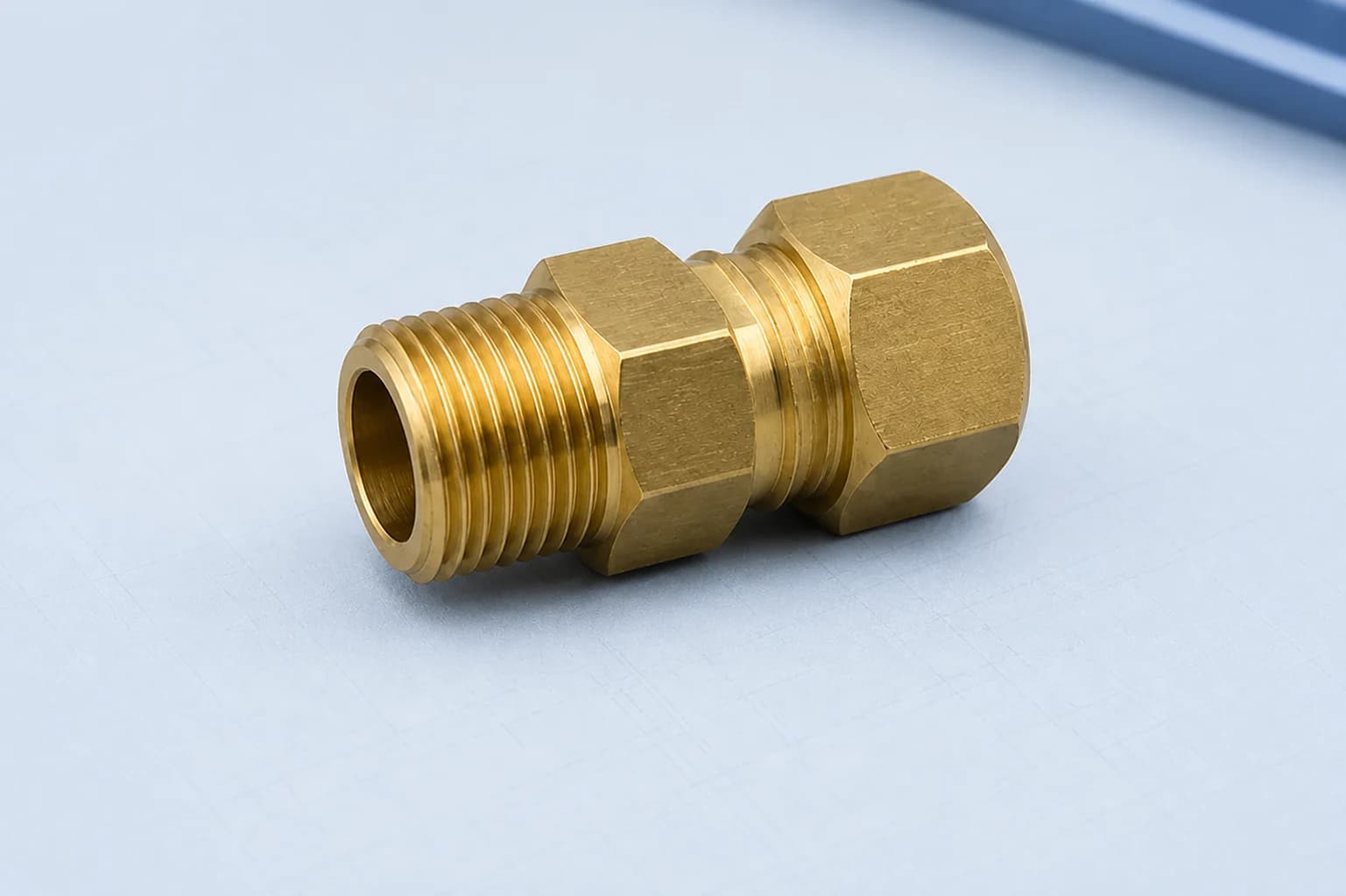

Made-to-drawing male / Female Connector Body for instrumentation and pneumatic OEMs. Connection geometry, material, finish and inspection requirements are confirmed during quotation.
BFC-CF-03Made to drawingOEM supply
- Product code
- BFC-CF-03
- Product family
- Compression Fitting Bodies
- Typical buyers
- Instrumentation and pneumatic OEMs
- Manufacturing basis
- Approved drawing and order specification
- Quotation inputs
- Drawing, application, quantity and inspection scope
Product images show typical configurations and are not dimensional specifications. Final construction follows the approved drawing and quotation.
Engineering options
Configure the part around your drawing
The quotation defines the exact interfaces, brass grade, manufacturing route and inspection package for the application.
Material and finish
Select the brass grade and surface finish around the medium, environment and compliance requirements.
Critical dimensions
Identify datums, tolerances, runout, surface finish and functional characteristics on the drawing.
Inspection package
Agree thread checks, dimensional reports, material documents and functional testing where required.
Technical specification
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
| Male and female thread | Specify the required size, standard or drawing callout |
|---|---|
| Tube connection | Specify the required size, standard or drawing callout |
| Hex and internal bore | Specify the required size, standard or drawing callout |
| Material and finish | Specify the brass grade, plating and applicable compliance requirements |
| Quantity and packaging | Include first-order quantity, annual demand and packaging preference |
Quality planning
Inspection and documentation for this part
The required controls are agreed during quotation according to the drawing, application risk and order scope.
Related products
More Compression Fitting Bodies Components
Explore related component types in the same manufacturing and application family.
BFC-CF-01Compression Fitting Bodies
Straight Compression Fitting Body
- Tube outside diameter
- Connection thread
- Cone and body geometry
BFC-CF-02Compression Fitting Bodies
Bulkhead Union Body
- Tube outside diameter
- Panel thickness
- Body thread and hex
BFC-CF-04Compression Fitting Bodies
Compression Nut & Ferrule Set
- Tube outside diameter
- Nut thread
- Ferrule form and material
Request a quotation for Male / Female Connector Body
Send the drawing, application, quantity and inspection requirements. We will review the information needed to prepare a clear quotation.
