Custom Brass Compression Bulkhead Union Body
Custom Brass Compression Bulkhead Union Body made to drawing, with connection geometry, material, inspection and supply scope confirmed before quotation.

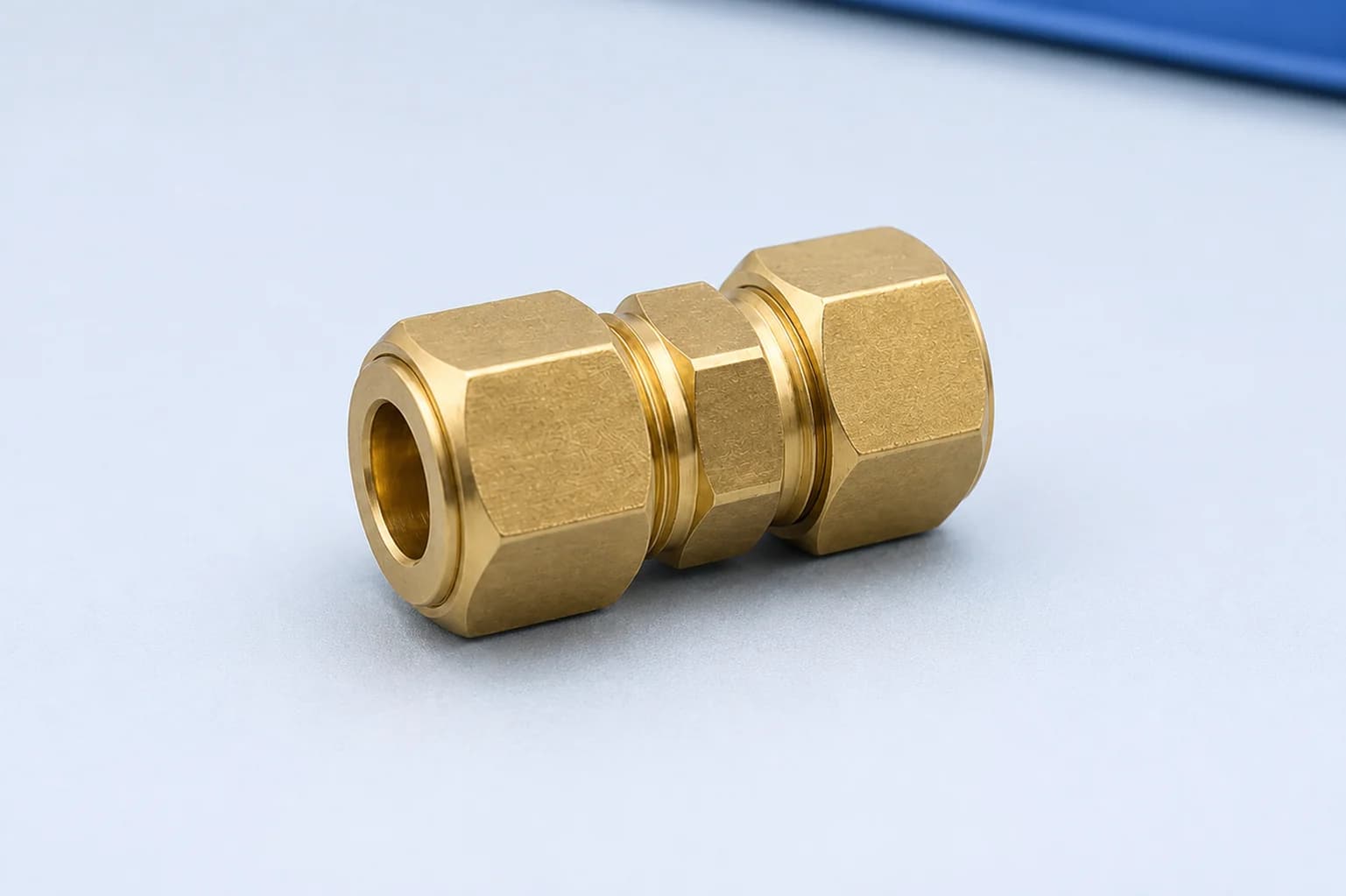

View drawing checklistStraight Compression Fitting Body
Made-to-drawing brass body for a customer-defined compression fitting assembly. This page covers quotation of the machined body; mating parts and assembly-level responsibility are confirmed separately in writing.
Scope before quotation
This route is a machined-body RFQ, not a ready-to-install compression fitting listing. Pressure ratings, assembly performance and compatibility with branded fitting systems are not assigned by this page.
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
01Requested supply scope
State machined body only, complete connector requested for capability review, or not sure.
02Tube interface
Provide the tube outside diameter, unit and customer-defined compression interface or drawing reference.
03Process-end connection
Specify the thread standard, nominal size, gender and complete drawing callout.
04Mating system
Provide the mating nut, ferrule arrangement and interface drawing when available; no branded-system interchangeability is assumed.
05Body geometry
Include bore, overall envelope, hex or wrench flats, shoulders, tolerances and critical surface requirements.
06Operating conditions
Provide the medium, pressure, temperature and assembly-level test requirements for engineering review.
07Material and finish
State the required brass alloy, finish, lead restrictions and documentation requirements.
08Order and inspection scope
Provide drawing revision, sample or order quantity, annual demand, inspection method, packaging and labeling.
Machined body quotation
- Page scope
- Machined fitting body to the approved drawing
- Requires written confirmation
- Nut and ferrule set · Complete connector assembly · Assembly-level leak testing
- Inspection package
- Agree thread checks, dimensional reports, material documents and functional testing where required.
Request Engineering Quote: Straight Compression Fitting Body
Send the available information. Missing technical decisions are identified before quotation.
