Custom Brass Hose Barb Adapter
Custom Brass Hose Barb Adapter made to drawing, with connection geometry, material, inspection and supply scope confirmed before quotation.

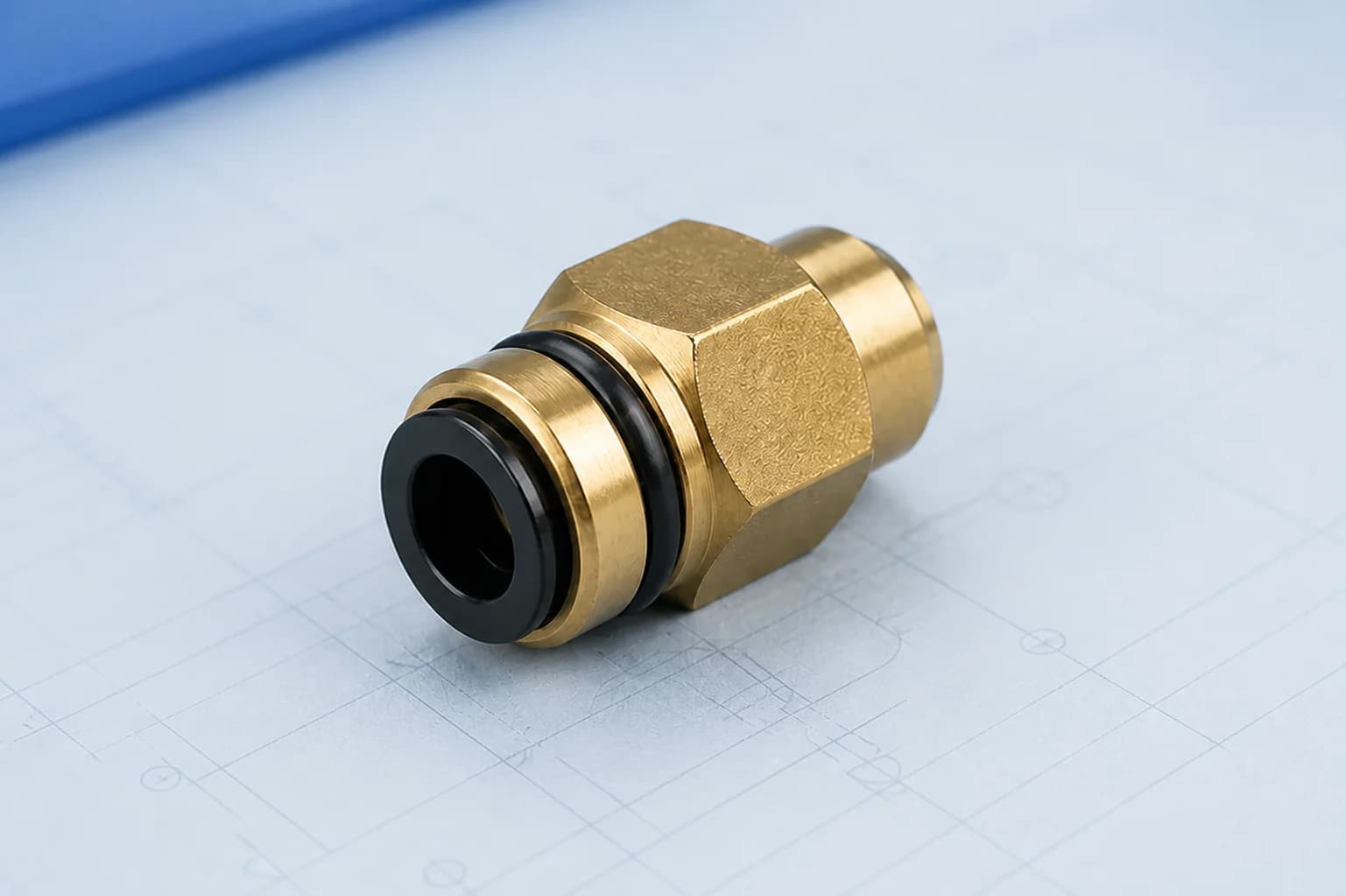

View drawing checklistPush-in Fitting Brass Body
Made-to-drawing brass component for industrial OEM projects. Connection geometry, material, finish and inspection requirements are confirmed during quotation.
Scope before quotation
This page describes a component-level sourcing route. Complete assembly performance is not implied unless confirmed in the written quotation.
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
01Tube outside diameter
Define the requirement on the drawing or explain the mating condition.
02Body thread
Define the requirement on the drawing or explain the mating condition.
03O-ring groove and collet cavity
Define the requirement on the drawing or explain the mating condition.
Scope before quotation
- Page scope
- Machined body to the approved drawing
- Requires written confirmation
- Mating parts, seals, assembly, certification and functional responsibility
- Inspection package
- Agree thread checks, dimensional reports, material documents and functional testing where required.
Request Engineering Quote: Push-in Fitting Brass Body
Send the available information. Missing technical decisions are identified before quotation.
