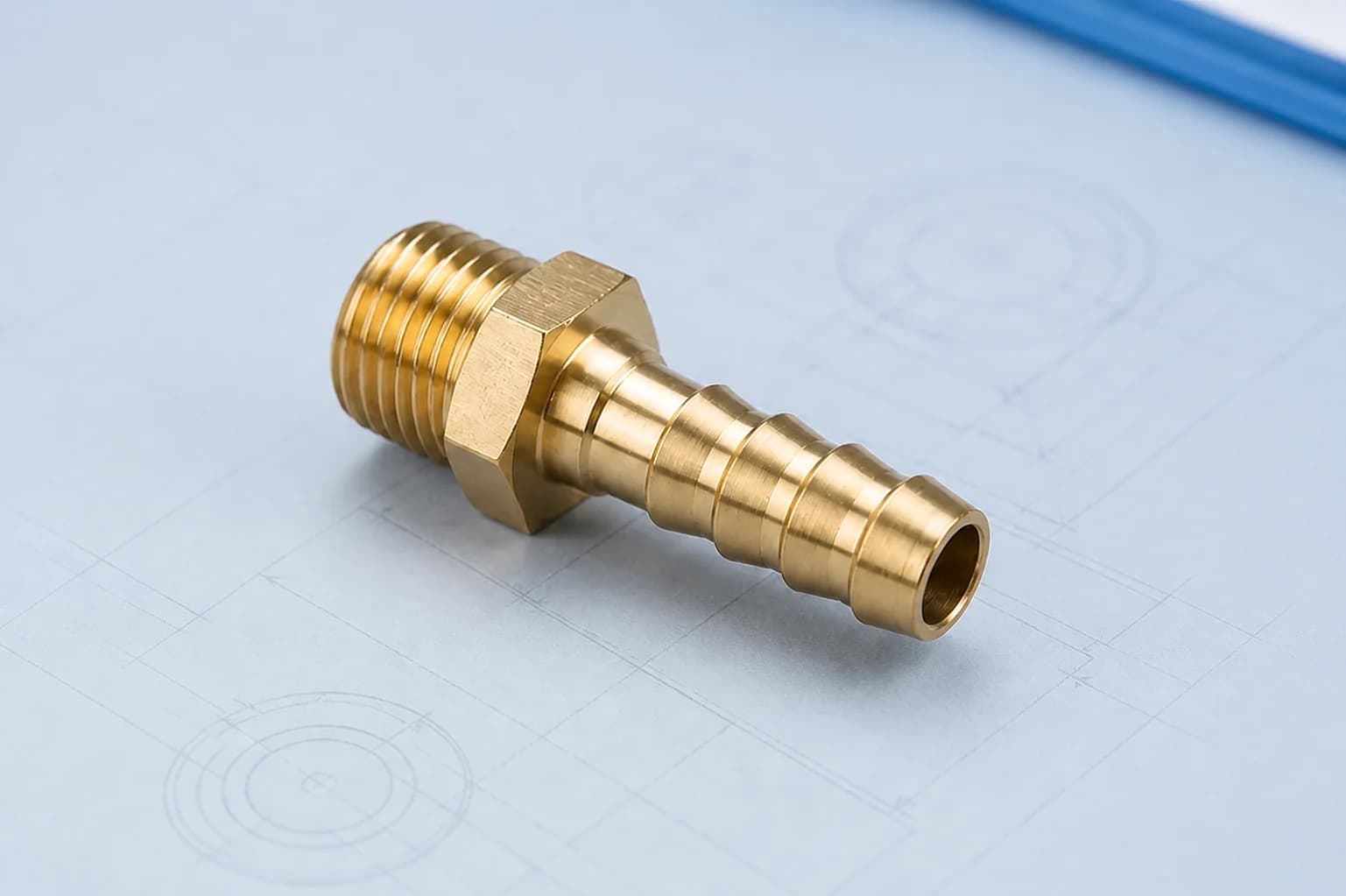

View drawing checklistCustom Brass Hose Barb Adapter
Made-to-drawing custom brass hose barb adapters for industrial equipment, hose assemblies and private-label fitting programs. Hose fit, barb geometry, opposite connection, material and inspection scope are confirmed from the drawing and application before quotation.
Scope before quotation
No NPT, NPTF, BSP, metric thread, hose material, clamp method, pressure rating, media compatibility or certification is assigned by default. Push-on, push-lock, push-to-connect and branded hose systems require separate geometry and application review.
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
01Hose definition
Provide the hose inside diameter, hose material, wall construction and the mating hose reference when available.
02Barb profile
Specify the barb outside diameters, number of barbs, pitch, insertion length, end form and any controlled drawing features.
03Opposite connection
Provide the complete thread or other connection callout, nominal size, gender, sealing method and mating component.
04Retention method
State whether the assembly uses a clamp, crimp ferrule, another retention method or a customer-defined no-clamp profile.
05Application conditions
Provide the medium, pressure, temperature, vibration, installation environment and required test basis.
06Material and finish
State the required brass alloy, finish, lead restrictions and documentation or compliance requirements.
07Commercial and inspection scope
Include drawing revision, sample or order quantity, annual demand, inspection method, packaging and labeling.
Scope before quotation
- Page scope
- Machined body to the approved drawing
- Requires written confirmation
- Mating parts, seals, assembly, certification and functional responsibility
- Inspection package
- Agree thread checks, dimensional reports, material documents and functional testing where required.
Request Engineering Quote: Custom Brass Hose Barb Adapter
Send the available information. Missing technical decisions are identified before quotation.
