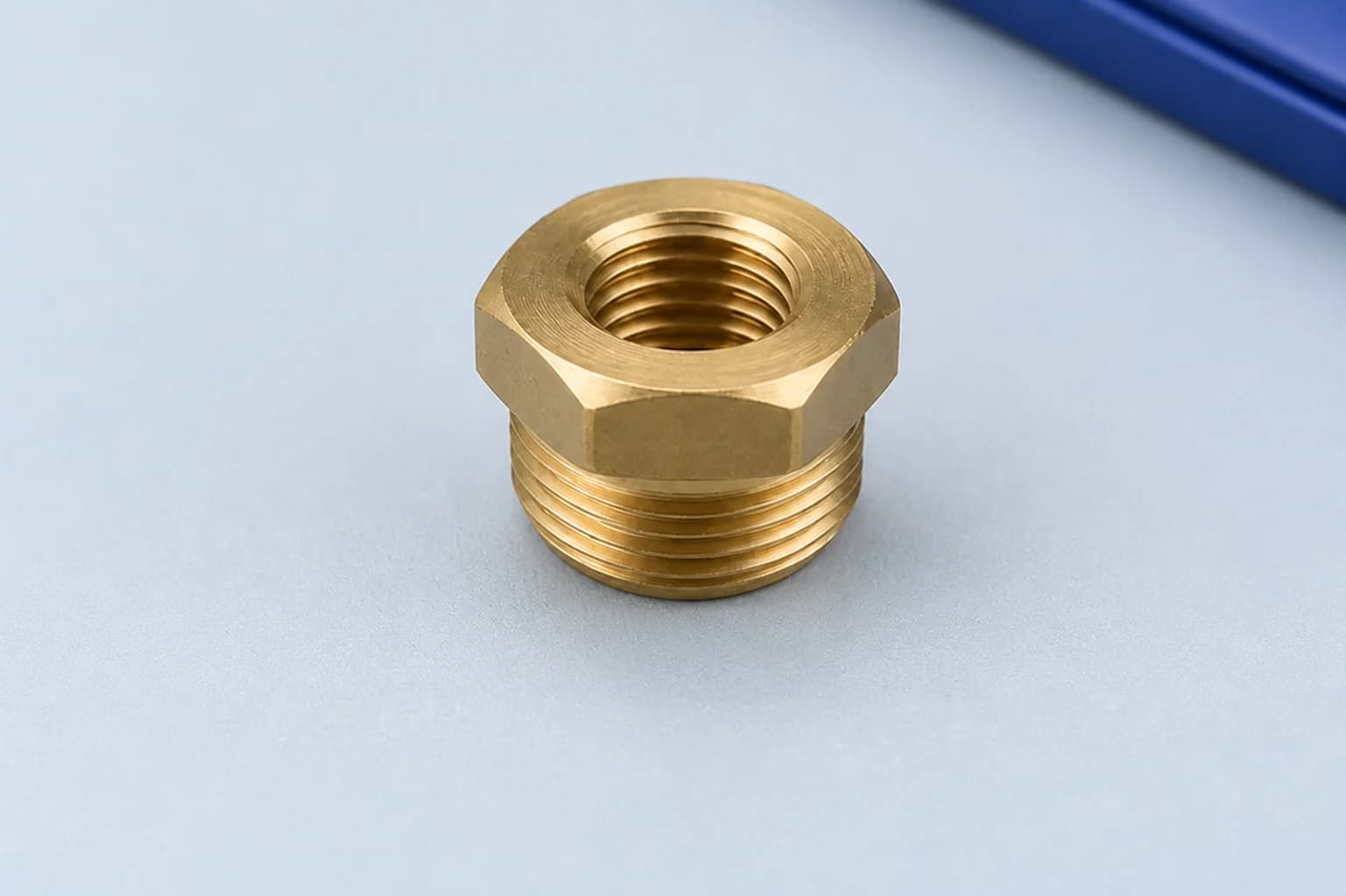

View drawing checklistCustom Brass Hex Reducing Bushing
Made-to-drawing brass hex reducing bushing for a customer-defined male-to-female thread conversion. Both connection standards, sealing methods, wall geometry, material and inspection scope are confirmed before quotation.
Scope before quotation
NPT, NPTF, BSPP, BSPT and metric threads are separate requirements and are not assumed. This page does not establish potable-water, gas, refrigeration or hydraulic suitability, pressure ratings, material grade, certification or brand interchangeability.
Details to include in your RFQ
Exact values are manufactured to the approved drawing. Include the following information where available.
01Male connection
Specify the complete thread standard, nominal size, pitch or threads per inch, gender and sealing method.
02Female connection
Specify the complete internal thread callout, nominal size, engagement requirement and sealing method.
03Size relationship
State the required reduction, mating components and whether the part is a hex bushing rather than a coupling, nipple or sleeve.
04Critical geometry
Provide overall length, hex size, wrench clearance, wall thickness, bore, shoulders, tolerances and drawing revision.
05Operating conditions
Provide the medium, pressure, temperature and installation environment for engineering review.
06Material and finish
State the required brass alloy, finish, lead restrictions and documentation or compliance requirements.
07Order and inspection scope
Provide sample or order quantity, annual demand, thread-gauge requirements, reports, packaging and labeling.
Scope before quotation
- Page scope
- Machined body to the approved drawing
- Requires written confirmation
- Mating parts, seals, assembly, certification and functional responsibility
- Inspection package
- Agree thread checks, dimensional reports, material documents and functional testing where required.
Request Engineering Quote: Custom Brass Hex Reducing Bushing
Send the available information. Missing technical decisions are identified before quotation.
